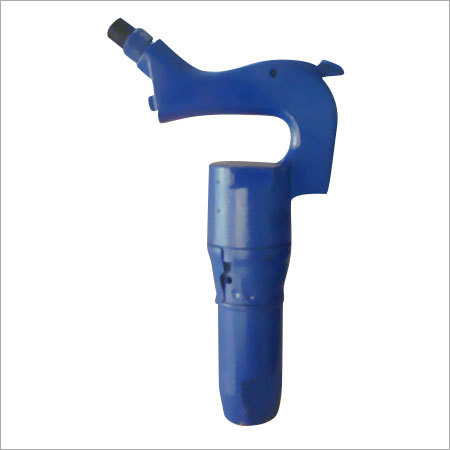

Pneumatic Chipper

Name: Pneumatic Chipper
Brand: PLASTIC MACHINERY
Price: 12000 INR
Availability: InStock

Price 12000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pneumatic Chipper Specification

Structure
Pistol Grip

Power
0.9 HP

Media
Compressed Air

Material
Alloy Steel

Air Consumption
8-10 cfm

Speed
4200 BPM (Blows Per Minute)

Maximum Torque
17 Nm

Stroke Length
2.63 inch

Noise Level
85 dBA

Overall Length
285 mm

Recommended Hose Size
10 mm

Weight
2.2 kg

Air Inlet
1/4 inch BSP

Operating Pressure
6.2 bar

Pneumatic Chipper Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
3-5 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Pneumatic Chipper

Pneumatic Chipper

As an important enterprise, we make, export and supply a high-class variety of Pneumatic Chipper. Formed at our equipped production unit by exploiting best quality gears as per the state-of-the-art market trends, the presented chipper is mostly taken into use for both construction and industrial applications. In addition to this, the offered Pneumatic Chipper is accessible in diverse stipulations to satisfy the extensive requirements of the clients.

Key Features:

Energy efficient
Less maintenance
Excellent strength
High functionality
Avail in different specifications

Our Chippers are sturdy and a must for the fettling activities in the foundries. Depending on the requirement chisels in length of 8, 12, 14, 18 and 24 can be used along with the chipper.

The Specifications of Chippers are

Model	Total Length (in mm)	Approx Weight in Kg	Blows Per Minute
CH1AT	330	5.9	3050
CH2AT	357	6.2	2600
CH3AT	394	7.0	2100

High-Performance Pneumatic Chipper for Industrial Use

Our Pneumatic Chipper stands out for its exceptional power and reliability, making it ideal for heavy-duty chipping and surface preparation tasks. With a speed of 4200 BPM, 0.9 HP motor, and a solid alloy steel body, it handles even the toughest materials efficiently. Its ergonomic pistol grip ensures stability during operation, while a low noise level of 85 dBA provides a superior user experience. Engineered and supplied by a trusted Indian manufacturer, this tool delivers lasting value.

Efficient and Safe in Every Application

This Pneumatic Chipper combines safety and efficiency with its precise engineering. The 2.2 kg lightweight design reduces fatigue, and the 285 mm length allows better access in confined spaces. Compatible with a standard 1/4 inch BSP air inlet and requiring a 10 mm hose, its easy to set up in various industrial environments. Its robust operation at 6.2 bar pressure consumes 8-10 cfm of compressed air, ensuring cost-effective, continuous use with minimal maintenance needs.

FAQs of Pneumatic Chipper:

Q: How should the Pneumatic Chipper be set up for optimal performance?

A: To achieve optimal performance, connect the chipper to a compressed air source using a 10 mm hose and ensure the air inlet is 1/4 inch BSP. Maintain operating pressure at 6.2 bar and regular air consumption between 8-10 cfm. Always check fittings for secure connections to prevent leaks and maximize efficiency.

Q: What materials can this Pneumatic Chipper effectively handle?

A: Crafted from alloy steel and delivering up to 17 Nm torque, this chipper is built for industrial-level tasks such as removing slag, rust, or scale from metal surfaces, and can also be used for light concrete chipping or similar materials depending on the application requirements.

Q: When should I use a pneumatic chipper instead of an electric tool?

A: A pneumatic chipper is ideal when you need consistent power output, lightweight handling, or must operate in environments where electricity may pose a hazard. Its particularly suited for areas requiring high blows per minute, such as metal workshops, construction, and shipyards.

Q: Where is this Pneumatic Chipper manufactured and can it be exported?

A: The chipper is manufactured in India by a reputed exporter, producer, and supplier with international distribution capabilities, ensuring global customers receive reliable, high-quality products.

Q: What is the process for routine maintenance?

A: Routine maintenance involves lubricating the moving parts with air tool oil, checking for wear on the piston and cylinder, ensuring the air filter is clean, and inspecting the hose for any signs of damage. This extends tool lifespan and maintains peak performance.

Q: How does the ergonomic pistol grip benefit usage?

A: The pistol grip structure enhances handling comfort and control, which is especially important during prolonged use. It allows for efficient maneuverability and reduces strain on the users wrist and arm.

Q: What are the main benefits of using this Pneumatic Chipper?

A: The chipper offers high efficiency with its 4200 BPM speed, powerful output, and durable construction. Its low noise level (85 dBA) and lightweight design (2.2 kg) reduce operator fatigue, while compatibility with standard air systems makes it practical for various industrial applications.
